2219 aluminium alloy has poor corrosion resistance, good machining performance, poor brazing properties, and nice performances in arc welding and spot welding. Compared with 2024 aviation grade aluminium sheet, 2219 aerospace aluminium has better heat resistance and is suitable for aerospace structural parts and high-strength welding parts that work at a high temperature of 315°C. 2219 aluminum suppliers usually offer the following types based on tempers: 2219 t6 aerospace grade aluminum, 2219-T851 aluminum plate, 2219-T87 aluminum plate and 2219-T62 aluminum sheet.
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Zr | Ti |
2219 | 0.20 | 0.30 | 5.8-6.8 | 0.20-0.40 | 0.02 | - | 0.10 | 0.10-0.25 | 0.02-0.10 |
Alloy | Temper | Thickness | Width |
2219 | T62 (MCS) | 4-260mm | 1200-3800mm |
2219 | T6 (CS) | 4-260mm | 1200-3800mm |
2219 | T87/C10S | 4-260mm | 1200-3800mm |
Alloy | State | Direction | Thickness (mm) | Tensile strength (Mpa) | Yield Strength (Mpa) | Breaking Elongation | Standard |
2219 | T62(MCS) | LT | 12-100 | 420-430 | 285-230 | 14-15 | GJB390A |
2219 | T6(CS) | LT | 12-100 | 420-450 | 350-365 | 14-16.5 | GJB390A |
2219 | T87/C10S | LT | 12-100 | 450-475 | 360-390 | 8-13.5 | GJB390A |

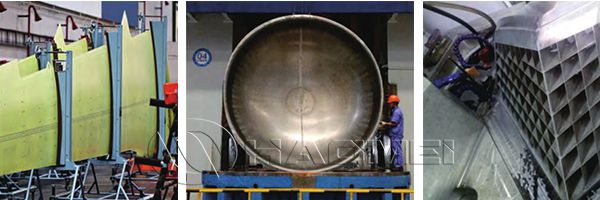

2219 aluminum plate is applied to airplane wing panels, aerospace fuel tank panels, aircraft lip mouth grilles etc.
2219 aluminum sheet priceChina 2219 aluminum suppliers give offers by adding aluminium ingot price and their processing cost. Haomei is of no exception. If you need a price, welcome to send details!
