2024 aviation grade aluminium sheet

Time:2021-03-23

Alloy : 2024

Temper : T351, T3, T4

Thickness : 0.3-260mm

Width : 1000-3800

Application : fuselage skins, skins for aircraft, thin-walled components, honeycomb sandwich panel etc.

Inquiry

1 2 3

2024 aviation grade aluminium belongs to high-strength aluminum, and has a certain degree of heat resistance, good forming properties in hot, annealed and newly quenched states. The heat treatment strengthening effect of 2024 aluminum sheet is significant, but the heat treatment process is strict.

2024 avaition aluminium chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Zr	Ti	Standard
2024	0.50	0.50	3.8-4.9	0.30-0.90	1.20-1.80	0.10	0.25	-	0.15	GB-AMS-EN

In the application field of aviation grade aluminium alloy 2024, there are aerospace heavy plates and thin sheets.

Aerospace heavy plates 2024-T351 for aircraft wing panels

Aircraft wing panel made of aerospace heavy plate 2024-T351.jpg

Specification

Alloy	Temper	Thickness	Width
2024	T351	4-260mm	1200-3800mm

Mechanical Properties

Alloy state	Direction	Thickness	Tensile strength	Yield Strength	Breaking Elongation	Standard
2024-T351	LT	6-102	460-495Mpa	320-340Mpa	12.5-21.5	AMS-QQ-A-250/4

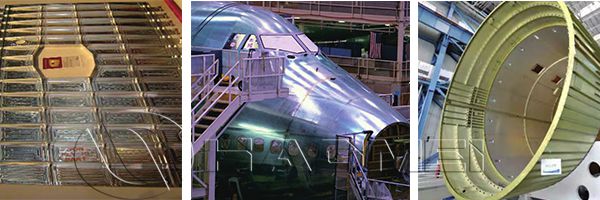

Thin 2024 aluminum sheet for fuselage skins and other aviation uses

2024 aviation aluminum sheet finds its applications in fuselage skins, skins for aircraft, thin-walled components, honeycomb sandwich panel etc.

Application of thin 2024 aluminum sheet in aviation.jpg

Specification

Alloy	Temper	Thickness	Width
2024	T3, T4	0.3-4.0mm	1000-2600mm

Mechanical Properties

Alloy	State	Thickness	Tensile strength	Yield Strength	Breaking Elongation	Standard
2024	T4	0.3-3.5mm	430-450Mpa	280-310Mpa	18-21	GB/T3880-EN485 ASTM B209

Price of 2024 aviation grade aluminium sheet

Aluminum ingot price on the day of shipment + processing fees
