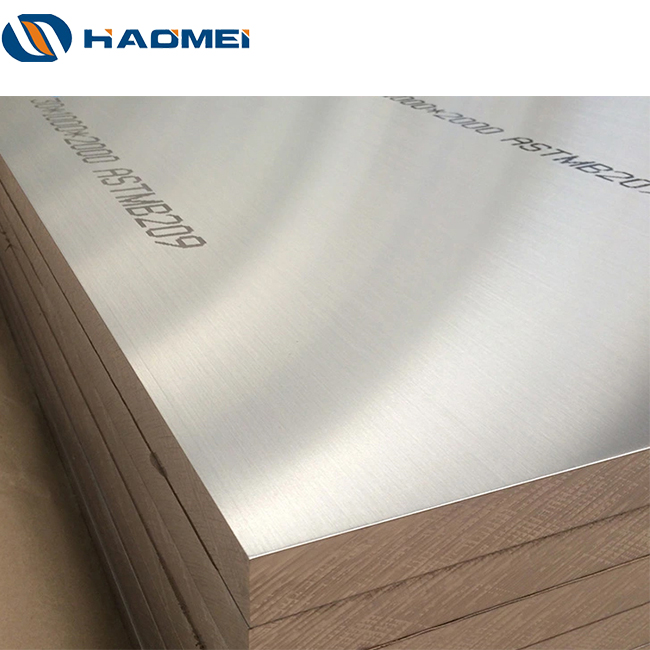

6061 aircraft aluminum plate

Time:2021-03-15

Series : 6061

Temper : T651, T6

Thickness : 4-260mm

Width : 1200-3800mm

Application : aircraft elevators

Inquiry

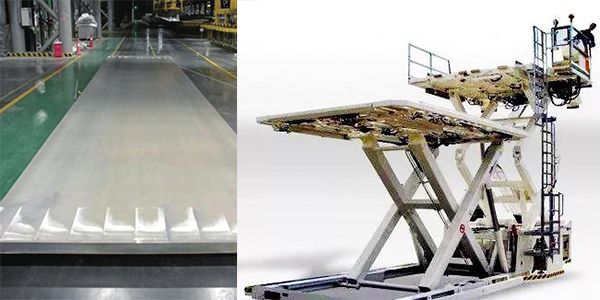

　　The main alloying elements in 6061 aircraft grade aluminium alloy are magnesium and silicon, which have medium strength, good corrosion resistance, welding ability and good oxidation effect. 6061 t6 aircraft grade aluminum is widely used in various industrial structural parts that require certain strength and high antimicrobial corrosion. 6061 aluminum plate has no stress-resistance corrosion cracking tendency, good welding performance, good forming ability, and good process performance. It is used in aircraft elevators and other fields.

Chemical Composition of 6061 Aircraft Grade Aluminum

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Zr	Ti	Standard
6061	0.40-0.80	0.70	0.15-0.40	0.15	0.80-1.2	0.04-0.35	0.25	-	0.15	GB-AMS-EN

Aluminium Aircraft Grade 6061 Specifications

Alloy	Temper	Thickness	Width
6061	T651, T6	4-260mm	1200-3800mm

Mechanical Properties of Aircraft Level 6061 Aluminum Plate

Alloy state	Direction	Thickness (mm)	Tensile strength	Yield Strength	Breaking Elongation	Standard
6061-T651	LT	6-260	320-360Mpa	285-330Mpa	10-14.5	AMS4113E

Price of 6061 aircraft aluminum level plate: aluminium ingot price + processing cost
